MAKER: Zulauf & Zschokke

c. 1900

SIGNED:Zulauf & Zschokke, Zurich

SERIAL NUMBER: 1752

AUTHOR: Barry Sobel, with information about the history of the company by Brian Stevenson

EDITOR: Joseph Zeligs

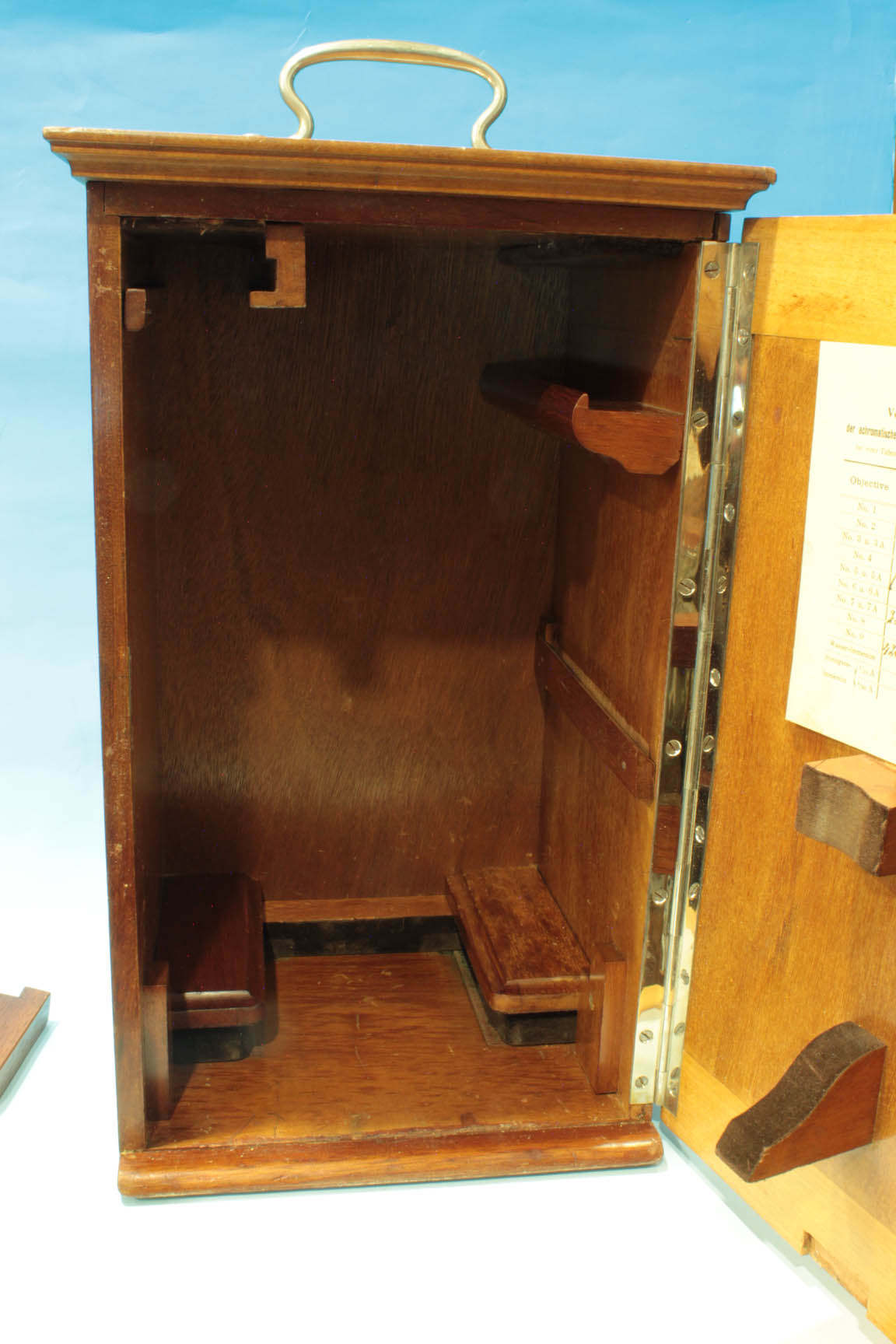

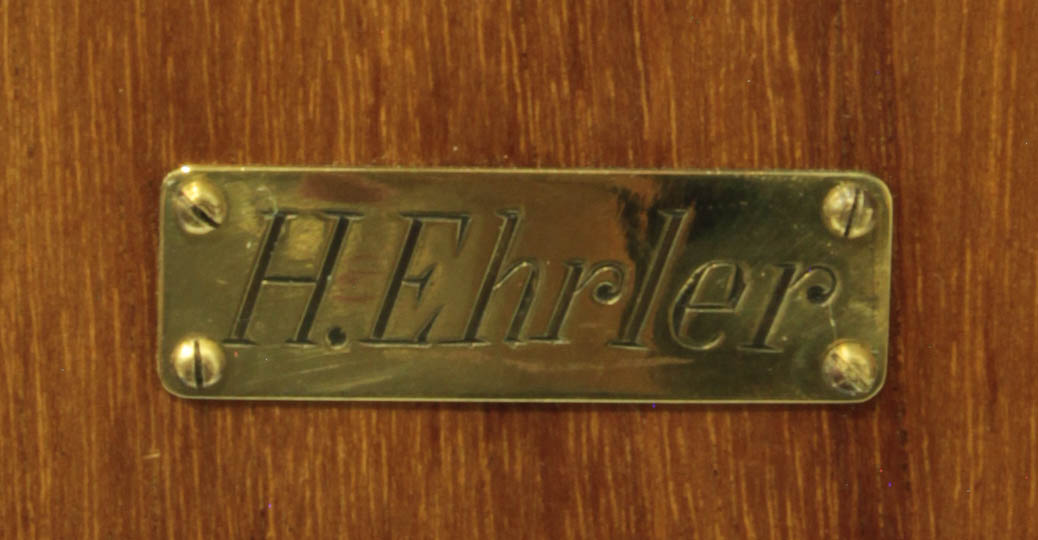

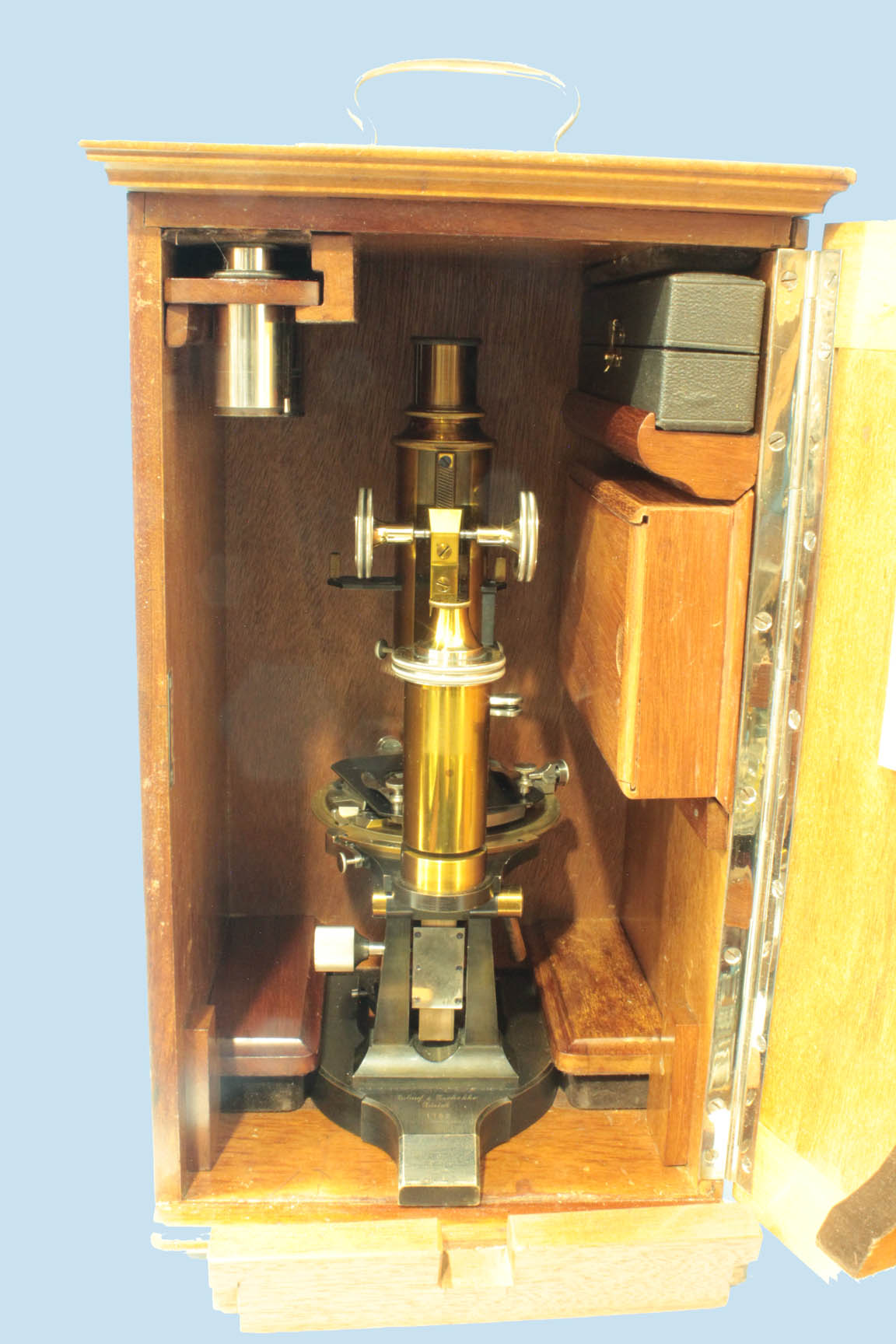

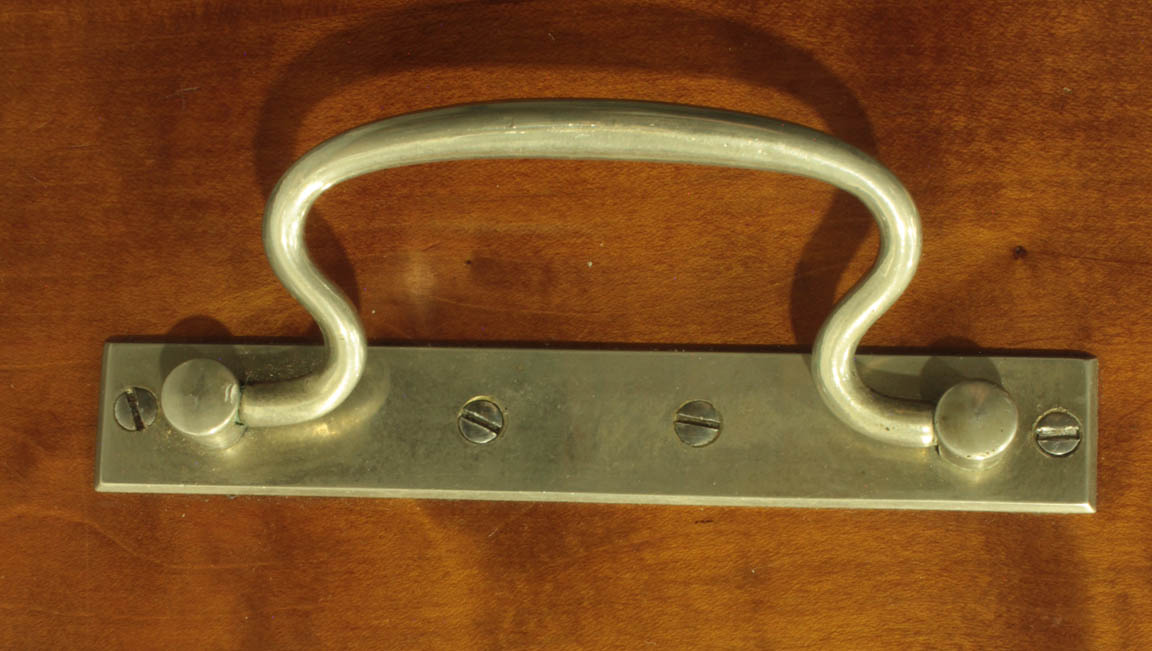

The cabinet for this instrument is made with tongue-in-groove construction. The handle on top, lock and key are all nickel-silver. A brass name plate presumably with the owner's name, H. Ehrler is on the front door. Fittings to hold the leather-covered box for objectives and the wooden accessory box are on the right side of the inside, and a fitting to hold the wooden slider holding the eyepieces is on the left side. The microscope stores with its foot under two thick wooden pieces, and once in place a horizontal wooden support fits into retaining pieces on each side of the cabinet. This cabinet is very similar to Zeiss cabinets of the same time period, except for the design of the contained leather-covered case for the objectives where Zeiss used a wooden case holding cans for each objective. This microscope case has a wooden piece that fits into place from the front after the microscope is stored and serves to help prevent shifting of the microscope in the case; this is shown in the last image below.

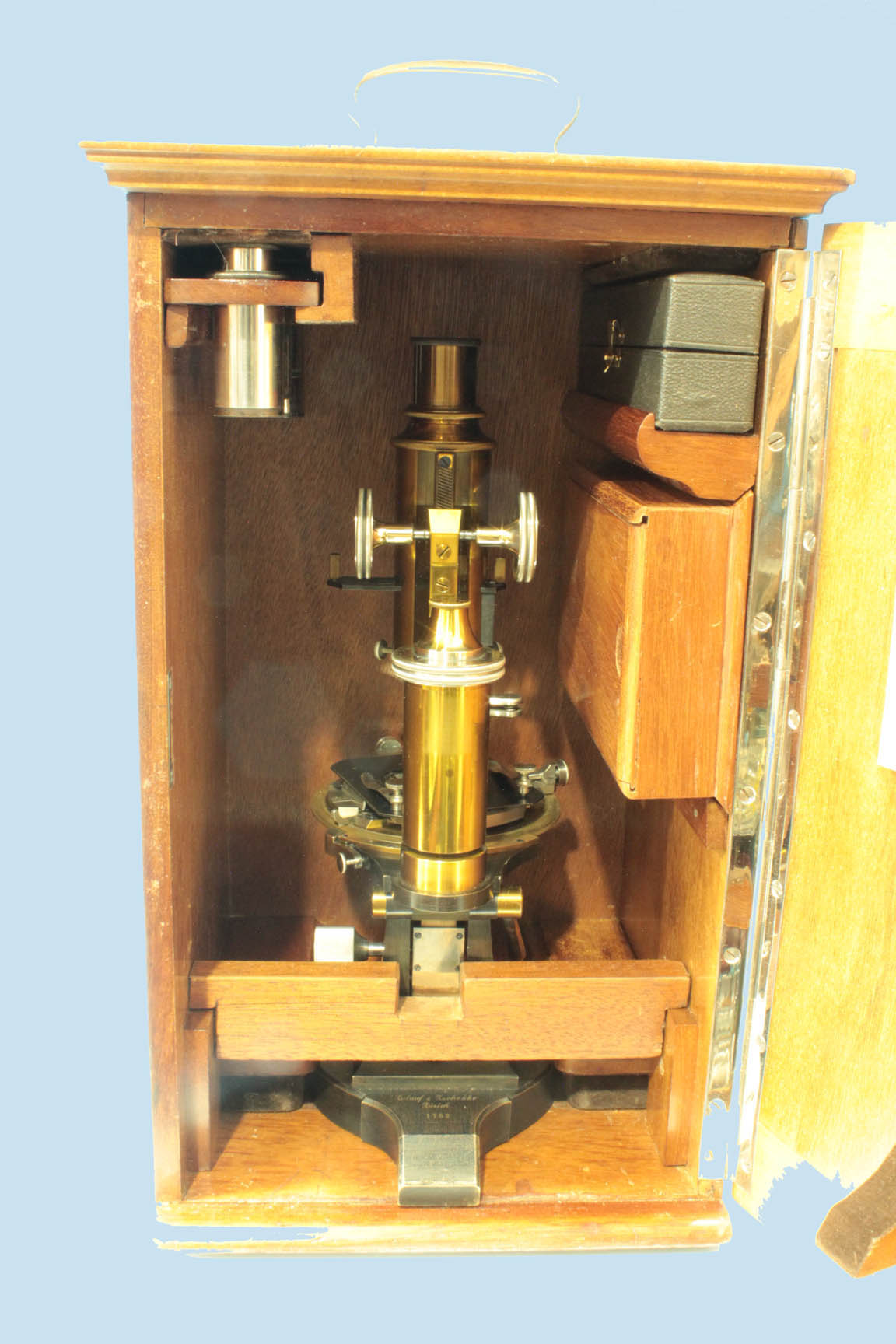

A Wooden Stay is added near the foot of the microscope to assist in holding it in position during transport:
